Hormann Sectional doors information and pricing

The following video gives information about the security of a Hormann Sectional Door when combined with one of Hormann Supramatic or Promatic electric openers.

Available models:
A top seller with us and with a 10-year warranty it's little wonder.  They have four models to choose from all manufactured from polyester coated steel (except for the timber doors) and all have 'all round' weather seals:

LTE40
A single skin steel door - no insulation
Available in widths:
 Imperial: 6'10", then 7' to 16', in 6" & 12" increments,
 Metric: 2250mm to 5000mm in approx 250mm increments, with heights up to 3m
 Made to measure: Available
Designs: S-Ribbed, M-Ribbed & S-Panelled Georgian
Finishes: Woodgrain only
Glazing: Yes
Colour options: Available in 16 std colours, also colours from RAL chart
See prices below

LPU40
A double skin steel door with 42mm insulation
Available in widths:
 Imperial: 6'10", then 7' to 16', in 6" & 12" increments
 Metric: 2250mm to 6500mm in approx 250mm & 500mm increments, with heights up to 3m
 Made to measure: Available - max 5.5m x 2.5m or 4.5m x 3m
Designs: S-Ribbed, M-Ribbed, L-Ribbed, S-Panelled Georgian.
Finishes: Woodgrain, Silkgrain & Decograin
Glazing: Yes
Colour options: Available in 16 std colours, also colours from RAL chart,
Decograin finishes: Light Oak, Golden Oak, Dark Oak, Night Oak (almost black) Rosewood and Titan Metallic (anthracite)
See prices below: Ribbed White and Colour & Decograin and Georgian

LTH40
Timber sectional doors for the ultimate, natural look without compromise - available in Nordic Pine or Hemlock.  A whole range of designs are available including granite inserts which looks fantastic, you can even have your own design of profiling set into the door.  Not cheap, but if an exclusive look is your thing - grab a brochure.

Back to top

Designs and styles:

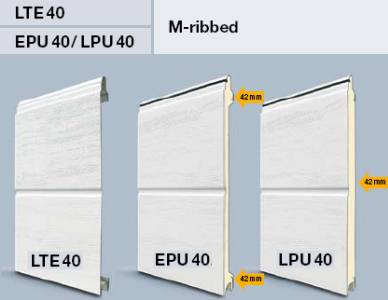

All of the above models are available in Ribbed or Georgian styles:

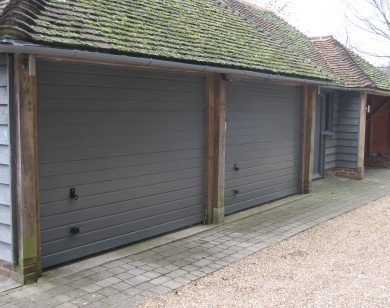

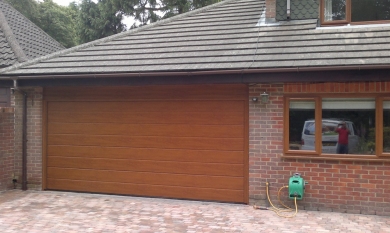

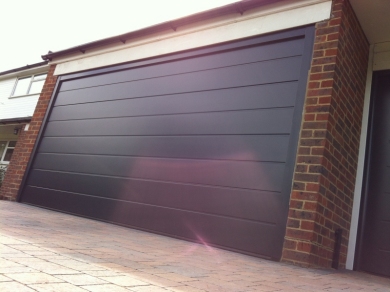

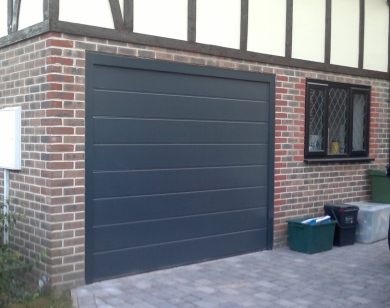

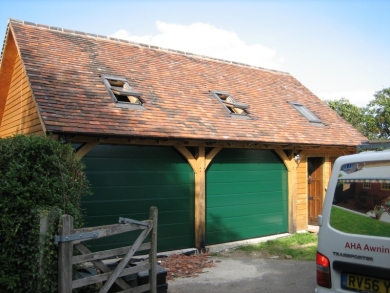

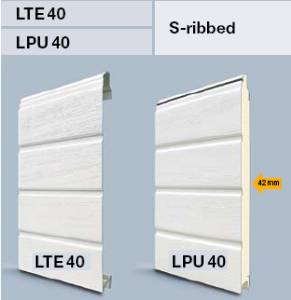

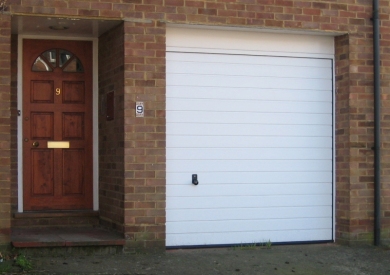

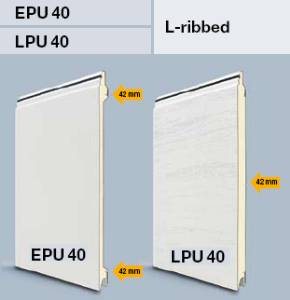

S-Ribbed                                                    M-Ribbed Decograin in Golden Oak       L-Ribbed in Grey

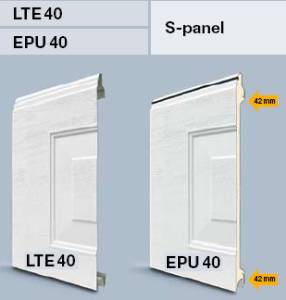

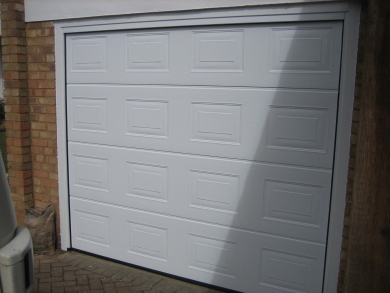

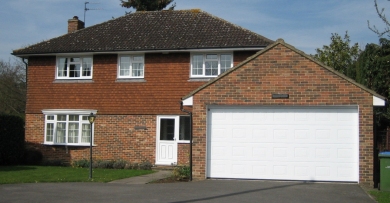

Note: The number of Georgian panels across the width of the door varies with both design and the ordering width.  Refer to the price list below... the number in brackets indicates the number of Georgian panels across that particular door.

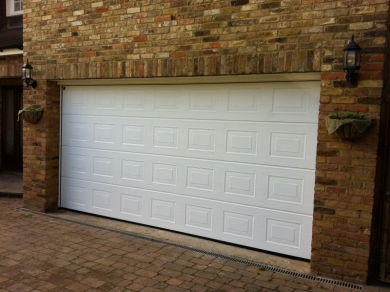

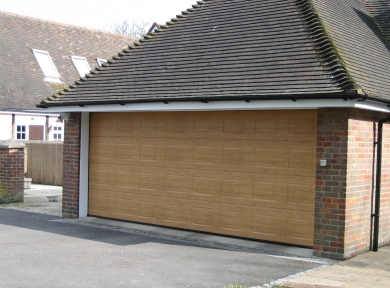

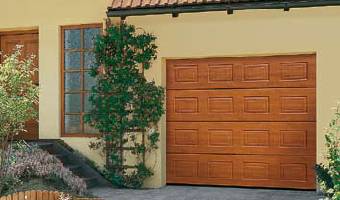

S-panel Georgian in Decograin Golden Oak

Glazing:

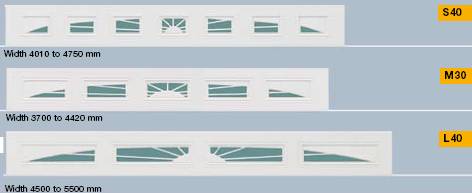

Windows in four designs are available as an option in the top one or two door sections only.  These examples show windows in a 2500mm wide door.

S-panel Georgian windows                M-sized windows - Ribbed door only    L-sized windows - Ribbed door only

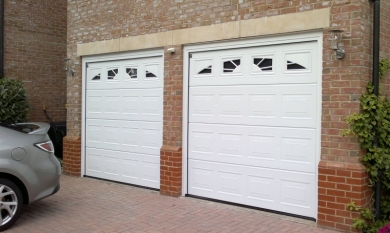

Sunrise glazing for S-panel Georgian = S40 only.  In ribbed doors M30 and L40 is also available.   These examples show windows in a 14' wide door.

The number of windows across the width of the door varies with both design and the ordering width.   Refer to the price list below... the number in brackets indicates the number of Georgian panels across that particular door.  As an example a 14' wide LPU40 S-panel Georgian will have seven S0 windows at £65 each = £455 inc VAT The above windows also available in Ribbed doors in the same qty of windows as the Georgian.

Back to top

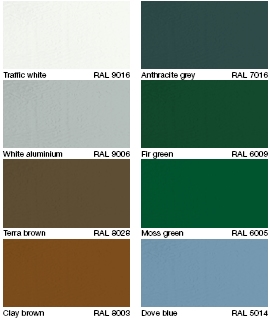

Colours:
Doors are supplied in Traffic White as standard.  LTE40, EPU40 and LPU40 doors can be finished in the factory colours below for a small additional cost, or alternatively can be finished in one of 200 colours from the RAL colour chart.  Very dark colours are not possible on the EPU40 and LPU40 doors but can be used on the LTE40.



The fascia panel (the 90mm high frame across the top of the door) is supplied to match the door colour.  However, the upright frames on either side are supplied in white only (1).  If purchasing a coloured door you have two options. Option 1: If your frame is recessed behind the brickwork and will not show from outside then you can touch up any small area of frame visible with the touch up pot and brush supplied. Option 2: If your door opening is narrower than the structural opening then more of the white frame will show and it may be beneficial to purchase a profile cover (2).  These are either 55mm or 90mm wide.  Prices are from £75 for 55mm wide and £90 for 90mm wide based on a 7' door.  Also available in Decograin and RAL colours.

Electric Automation: Hormann's range of electric openers are fantastic quality units with full 5-year warranties, automatic latching for best security, kevlar belt for quiet operation and are very easy to fit.  Smaller doors up to 13'x7' are fine with the Promatic, larger doors need to use the Supramatic E.  Smaller doors can use the Supramatic if required as it travels a little faster and is capable of higher numbers of operating cycles per day.   For full specification see our other website.

Promatic opener                         Supramatic opener

The following video demostrates the superior speed of the Supramatic E electric opener with it's fast cycle opening:

!!!  Special offer  !!!     20% off Hormann Promatic and Supramatic E electric openers when purchased with a retractable or sectional door on a supply only basis.  Promatic £260 inc VAT and delivery (normally £300), Supramatic E £300 inc VAT and delivery (normally £340).

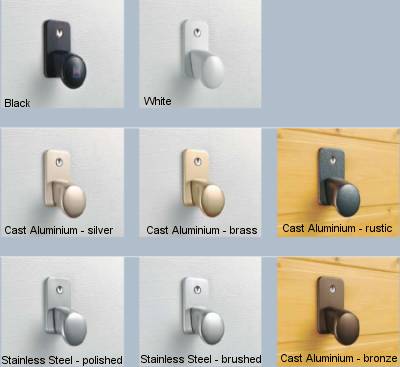

Handles: As most doors are fitted with electric operation these days, doors are supplied with no handles and no pre-cut hole.  If you wish to fit a handle then Black handles are £50 inc VAT.  A range of cast Aluminium and Stainless Steel handles in a range of finishes are available from £140 inc VAT.  All handles include a very secure locking system. A template and full instructions are supplied to enable you to fit the handles in the correct place.  Four holes are drilled in the corner of the template and a jigsaw with long blade is used to connect them. Back to top

Delivery: Delivery times vary slightly depending on the size of the door: Imperial sizes 2 to 3 weeks, metric 4/5 weeks, made to measure/special colour 6/8 weeks.  All doors are supplied flat packed and are built up on site in 5/6 hours. Brochure Link: Hormanns sectional door brochure is available for download and contain stacks of detail on these doors.  Link to latest brochure on Hormann's website (dropdown on RHS of the target page)

Back to top

Choosing the correct size:
Hormann Sectional doors can either fit inside the garage on the rear face of the brickwork (reveals) or using a sideways anchor kit can be fixed sideways within the brick opening; they require clearance on either side and headroom clearance (the distance between the ordering height and any obstruction above (ceiling or lintel)) as detailed below:

1. Side clearance

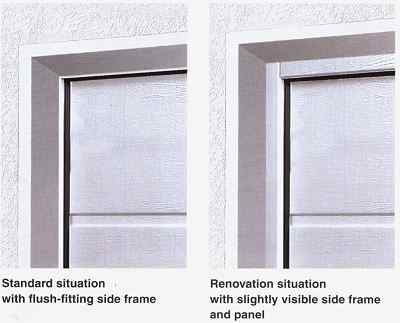

A 90mm wide frame securely supports the door panels on each side.  This can either be fitted to the brickwork on either side or within the opening.

 - Fitting behind the brickwork & lintel.  If your brick to brick opening is 7'6", order a 7'6" wide door, the 90mm
    (rounded to 4" in this example) frame will be in addition to the 7'6" so the total assembly width is 8'2"
 - Fitting between the brickwork & under the lintel.  If your brick to brick opening is 7'6", take off 2 x 4" to allow for
    the frame and special anchor kit so order a 6'10" wide door

2. Headroom clearance -
 - 100mm for manual doors up to 10ft wide
 - 115mm for automated doors up to 10ft wide
 - 210mm for doors over 10ft wide, a low headroom kit is available which requires 100mm (manual) 115mm electric

Doors are available both in standard imperial sizes (priced up below) and metric sizes; there is also a made to measure service - contact us for details

What happens if your opening does not match a standard size of door?  Don't forget you can remove existing wooden frames to improve the drive-through width.  You have a couple of options... here is an example.

Mr Blogg's garage opening size is 7'9" wide x 7' high and he wishes to fit an EPU40: Option 1 - install an 8' wide x 7' high door.  As the door fits behind the brickwork some of the door simply does not show, however, the internal garage width will need to be at least 2438mm (8') plus 2 x 90mm clearance, i.e. 2618mm.  One side must have at least 90mm clearance.  In height the clearance will need to be 2125mm (7') + 100mm clearance, i.e. 2225mm. Option 2 - install a 7'6" wide x 7' high door.  All doors have a 90mm wide fully finished frame which mounts to the brickwork.  The drive through width will be reduced and 1½" of frame will be visible on either side.  The internal garage width will need to be at least 2286mm (7'6") plus 2 x 90mm clearance, i.e. 2466mm. Option 3 - Hormann offer a factory cut down service... so order an 8' door and they will relieve you of £85 and trim it to 7'9"! Perfect!!

Back to top

Warranty info:
Hormann offer a full 10-year manufacturers warranty that covers both parts and surface finish.  Wheels and cables are 5-years.  Normal reasonable wear and tear, wilfil damage, etc, is excluded and products must be installed as per installation instructions.

Additional info:
Doors are made up of four sections 'stacked' on top of each other.
A double skin of steel adds stiffness and therefore makes for a more secure door.
If a section gets damaged, then it can be replaced with a couple of hours work.
Wicket doors (a personnel door within the sectional door are available in the LPU40 door - roughly £1000 extra.

Pricing:
The prices below represent significant savings on the Manufacturer's Recommended Retail Price

Call 01342 301811 to place your order.  Delivery is free of charge.

!!!  Special offer  !!!     20% off Hormann Promatic and Supramatic E electric openers when purchased with a retractable or sectional door on a supply only basis.  Promatic £260 inc VAT and delivery (normally £300), Supramatic E £300 inc VAT and delivery (normally £340).

***Apologies - prices have changed - some up some down - please contact us for the latest price.***

Hormann, LTE40, single skin steel (no insulation) sectional garage door:

Prices inc VAT and delivery	S-Ribbed		M-Ribbed		S-panel Georgian
Door Size	White	Std Colour	White	Std Colour	White	Std Colour
6’10” x 6’2” 2083 x 1875	£565	£623	£565	£623	£620	£678 (4)
6’10” x 6’10” 2083 x 2080	£565	£629	£565	£629	£620	£685 (4)
7’0” x 6’6” 2134 x 2000	£574	£638	£574	£638	£622	£686 (4)
7’0” x 7’0” 2134 x 2125	£574	£642	£574	£642	£622	£690 (4)
7’6” x 6’6” 2286 x 2000	£628	£696	£628	£696	£675	£743 (4)
7’6” x 7’0” 2286 x 2125	£628	£700	£628	£700	£675	£747 (4)
7’6” x 7'4" 2286 x 2250	£663	£739	£663	£739	£707	£784 (4)
7’6” x 7’9” 2286 x 2375	£708	£789	£708	£789	£797	£878
7’6” x 8’2” 2286 x 2500	£708	£793	£708	£793	£797	£882
8’0” x 6’6” 2438 x 2000	£658	£731	£658	£731	£710	£782
8’0” x 7’0” 2438 x 2125	£658	£735	£658	£735	£710	£787
8’0” x 7'4" 2438 x 2250	£695	£777	£695	£777	£738	£820
8’0” x 7’9” 2438 x 2375	£739	£825	£739	£825	£833	£919
8’0” x 8’2” 2438 x 2500	£739	£830	£739	£830	£833	£924
8’6” x 6’6” 2591 x 2000	£685	£762	£685	£762	£742	£819
8’6” x 7’0” 2591 x 2125	£685	£767	£685	£767	£742	£824
9’0” x 6’6” 2743 x 2000	£734	£815	£734	£815	£820	£902
9’0” x 7’0” 2743 x 2125	£734	£820	£734	£820	£820	£907
9’6” x 6’6” 2896 x 2000	£757	£843	£757	£843	£838	£924
9’6” x 7’0” 2896 x 2125	£757	£848	£757	£848	£838	£929
10’0” x 6’6” 3048 x 2000	£797	£888	£797	£888	£897	£987
10’0” x 7’0” 3048 x 2125	£797	£893	£797	£893	£897	£993
11’0” x 6’6” 3353 x 2000	£980	£1079	---	---	---	---
11’0” x 7’0” 3353 x 2125	£980	£1086	---	---	---	---
12’0” x 6’6” 3658 x 2000	£1068	£1177	---	---	---	---
12’0” x 7’0” 3658 x 2125	£1068	£1183	---	---	---	---
13’0” x 6’6” 3962 x 2000	£1096	£1214	---	---	---	---
13’0” x 7’0” 3962 x 2125	£1096	£1220	---	---	---	---
14’0” x 6’6” 4267 x 2000	£1183	£1310	---	---	---	---
14’0” x 7’0” 4267 x 2125	£1183	£1318	---	---	---	---
14’6” x 6’6” 4420 x 2000	£1216	£1347	---	---	---	---
14’6” x 7’0” 4420 x 2125	£1216	£1355	---	---	---	---
15’0” x 6’6” 4572 x 2000	£1231	£1366	---	---	---	---
15’0” x 7’0” 4572 x 2125	£1231	£1375	---	---	---	---
15’6” x 6’6” 4724 x 2000	£1269	£1410	---	---	---	---
15’6” x 7’0” 4724 x 2125	£1269	£1418	---	---	---	---
16’0” x 6’6” 4877 x 2000	£1319	£1464	---	---	---	---
16’0” x 7’0” 4877 x 2125	£1319	£1473	---	---	---	---

!!!  Special offer  !!!     20% off Hormann Promatic and Supramatic E electric openers when purchased with a retractable or sectional door on a supply only basis.  Promatic £260 inc VAT and delivery (normally £300), Supramatic E £300 inc VAT and delivery (normally £340).

***Apologies - prices have changed - some up some down - please contact us for the latest price.***

Hormann, LPU40 - RIBBED DESIGNS, double skin steel with 42mm insulation sectional garage door

Prices inc VAT & delivery	S-Ribbed Woodgrain		M-Ribbed Woodgrain		M-Ribbed  Silkgrain		L-Ribbed  Silkgrain/ Micrograin
Door size	White	Std Colour	White	Std Colour	White	Std Colour	White	Std Colour
6’10” x 6’2” 2083 x 1875	£786	£844	£786	£844	£793	£851	£829	£887
6’10” x 6’6” 2083 x 2000	£786	£848	£786	£848	£793	£855	£829	£891
6’10” x 6’10” 2083 x 2080	£786	£850	£786	£850	£793	£857	£829	£893
7’0” x 6’6” 2134 x 2000	£786	£850	£786	£850	£793	£857	£829	£893
7’0” x 7’0” 2134 x 2125	£786	£853	£786	£853	£793	£860	£829	£896
7’6” x 6’6” 2286 x 2000	£811	£879	£811	£879	£819	£887	£854	£922
7’6” x 7’0” 2286 x 2125	£811	£883	£811	£883	£819	£891	£854	£926
7’6” x 7'4" 2286 x 2250	£849	£925	£849	£925	£855	£932	£891	£968
7’6” x 7’9” 2286 x 2375	£888	£968	£888	£968	£867	£948	£931	£1012
7’6” x 8’2” 2286 x 2500	£915	£1000	£915	£1000	£922	£1007	£958	£1043
8’0” x 6’6” 2438 x 2000	£860	£933	£860	£933	£867	£940	£904	£976
8’0” x 7’0” 2438 x 2125	£860	£937	£860	£937	£867	£944	£904	£981
8’0” x 7'4" 2438 x 2250	£890	£971	£890	£971	£896	£978	£933	£1015
8’0” x 7’9” 2438 x 2375	£932	£1018	£932	£1018	£938	£1024	£975	£1061
8’0” x 8’2” 2438 x 2500	£962	£1053	£962	£1053	£970	£1061	£1005	£1096
8’6” x 6’6” 2591 x 2000	£874	£951	£874	£951	£881	£958	£917	£994
8’6” x 7’0” 2591 x 2125	£874	£956	£874	£956	£881	£963	£917	£999
9’0” x 6’6” 2743 x 2000	£946	£1028	£946	£1028	£953	£1034	£992	£1073
9’0” x 7’0” 2743 x 2125	£946	£1033	£946	£1033	£953	£1039	£992	£1078
9’6” x 6’6” 2896 x 2000	£999	£1085	£999	£1085	£1005	£1092	£1045	£1131
9’6” x 7’0” 2896 x 2125	£999	£1090	£999	£1090	£1005	£1097	£1045	£1136
10’0” x 6’6” 3048 x 2000	£1011	£1101	£1011	£1101	£1017	£1108	£1057	£1147
10’0” x 7’0” 3048 x 2125	£1011	£1107	£1011	£1107	£1017	£1114	£1057	£1153
11’0” x 6’6” 3353 x 2000	£1169	£1268	£1169	£1268	£1176	£1275	£1220	£1319
11’0” x 7’0” 3353 x 2125	£1169	£1275	£1169	£1275	£1176	£1281	£1220	£1326
12’0” x 6’6” 3658 x 2000	£1298	£1407	£1298	£1407	£1305	£1414	£1351	£1460
12’0” x 7’0” 3658 x 2125	£1298	£1413	£1298	£1413	£1305	£1421	£1351	£1467
13’0” x 6’6” 3962 x 2000	£1339	£1457	£1339	£1457	£1347	£1465	£1397	£1515
13’0” x 7’0” 3962 x 2125	£1339	£1464	£1339	£1464	£1347	£1472	£1397	£1522
14’0” x 6’6” 4267 x 2000	£1221	£1348	£1221	£1348	£1393	£1520	£1446	£1573
14’0” x 7’0” 4267 x 2125	£1221	£1356	£1221	£1356	£1393	£1528	£1446	£1581
14’6” x 6’6” 4420 x 2000	£1316	£1447	£1316	£1447	£1433	£1564	£1486	£1617
14’6” x 7’0” 4420 x 2125	£1316	£1455	£1316	£1455	£1433	£1572	£1486	£1625
15’0” x 6’6” 4572 x 2000	£1403	£1538	£1403	£1538	£1455	£1590	£1513	£1649
15’0” x 7’0” 4572 x 2125	£1403	£1547	£1403	£1547	£1455	£1599	£1513	£1658
15’6” x 6’6” 4724 x 2000	£1433	£1574	£1433	£1574	£1487	£1628	£1544	£1685
15’6” x 7’0” 4724 x 2125	£1433	£1582	£1433	£1582	£1487	£1636	£1544	£1693
16’0” x 6’6” 4877 x 2000	£1464	£1609	£1464	£1609	£1517	£1662	£1579	£1724
16’0” x 7’0” 4877 x 2125	£1464	£1618	£1464	£1618	£1517	£1671	£1579	£1733

Hormann, LPU40 - Decograin & Georgian Designs, double skin steel with 42mm insulation sectional garage door

***Apologies - prices have changed - some up some down - please contact us for the latest price.***

6’10” x 6’2” 2083 x 1875	L-Ribbed	M-Ribbed	S-panel Georgian
6’10” x 6’2” 2083 x 1875	Titan Metallic	Light Oak, Golden Oak,  Dark Oak, Night Oak Rosewood & Titan Metallic		White	Std Colour
6’10” x 6’2” 2083 x 1875	£914	£886	£977	£877	£935
6’10” x 6’6” 2083 x 2000	£934	£886	£977	£877	£939
6’10” x 6’10” 2083 x 2080	£947	£886	£180	£877	£942
7’0” x 6’6” 2134 x 2000	£934	£886	£965	£877	£941
7’0” x 7’0” 2134 x 2125	£947	£886	£965	£877	£945
7’6” x 6’6” 2286 x 2000	£958	£937	£1108	£953	£1021
7’6” x 7’0” 2286 x 2125	£971	£937	£1108	£953	£1025
7’6” x 7'4" 2286 x 2250	£1017	£975	£1145	£1023	£1041
7’6” x 7’9” 2286 x 2375	£1034	£1012	£1183	£1051	£1132
7’6” x 8’2” 2286 x 2500	£1058	£1039	£1211	£1082	£1167
8’0” x 6’6” 2438 x 2000	£1026	£950	£1132	£985	£1058
8’0” x 7’0” 2438 x 2125	£1039	£950	£1132	£985	£1062
8’0” x 7'4" 2438 x 2250	£1099	£988	£1169	£1087	£1169
8’0” x 7’9” 2438 x 2375	£1134	£1026	£1207	£1113	£1199
8’0” x 8’2” 2438 x 2500	£1159	£1053	£1235	£1129	£1220
8’6” x 6’6” 2591 x 2000	£1038	£964	£1196	£1043	£1120
8’6” x 7’0” 2591 x 2125	£1051	£964	£1196	£1043	£1125
9’0” x 6’6” 2743 x 2000	£1114	£1062	£1239	£1093	£1174
9’0” x 7’0” 2743 x 2125	£1128	£1062	£1239	£1093	£1179
9’6” x 6’6” 2896 x 2000	£1184	£1116	£1333	£1213	£1300
9’6” x 7’0” 2896 x 2125	£1201	£1116	£1333	£1213	£1305
10’0” x 6’6” 3048 x 2000	£1196	£1128	£1345	£1350	£1441
10’0” x 7’0” 3048 x 2125	£1213	£1128	£1345	£1350	£1447
11’0” x 6’6” 3353 x 2000	£1356	£1300	£1566	£1437	£1537
11’0” x 7’0” 3353 x 2125	£1377	£1300	£1566	£1437	£1543
12’0” x 6’6” 3658 x 2000	£1540	£1449	£1738	£1477	£1586
12’0” x 7’0” 3658 x 2125	£1566	£1449	£1738	£1477	£1592
13’0” x 6’6” 3962 x 2000	£1612	£1537	£1812	£1489	£1607
13’0” x 7’0” 3962 x 2125	£1641	£1537	£1812	£1489	£1614
14’0” x 6’6” 4267 x 2000	£1584	£1542	£1658	£1396	£1522
14’0” x 7’0” 4267 x 2125	£1610	£1542	£1658	£1396	£1530
14’6” x 6’6” 4420 x 2000	£1753	£1627	£1897	£1507	£1638
14’6” x 7’0” 4420 x 2125	£1782	£1627	£1897	£1507	£1646
15’0” x 6’6” 4572 x 2000	£1801	£1672	£1972	£1532	£1667
15’0” x 7’0” 4572 x 2125	£1830	£1672	£1972	£1532	£1676
15’6” x 6’6” 4724 x 2000	£1813	£1720	£1984	£1612	£1753
15’6” x 7’0” 4724 x 2125	£1881	£1720	£1984	£1612	£1761
16’0” x 6’6” 4877 x 2000	£1900	£1753	£1996	£1601	£1746
16’0” x 7’0” 4877 x 2125	£1932	£1753	£1996	£1601	£1755

Other sizes are available both in width and height - contact us for pricing.

Low headroom gear option for LTE40 and LPU40 doors over 10ft wide: £100 inc VAT
Sideways Anchor Kit: £50
ThermoFrame Set: up to 3250mm wide £200 inc VAT, wider £230 inc VAT
Black plastic handles £50, cast Aluminium available in white, rustic, silver, bronze or brass colours: FROM £120 inc VAT, Stainless steel handles £160 inc VAT.

Glazing options for Ribbed or Georgian doors are priced per window (refer to the numbers in brackets in the price tables to see how many glazing panels would be fitted to your size of door).  See the styles above

S0	£80	M0	£90	L0	£120	Sunrise	£95
S1	£90					per
S2	£90					window

Confused?!?  Give us a ring!  01342 301811

Back to top

Sitemap
