Spotlight on Sectional doors

Sectional doors are proving to be a popular choice for many of our customer, not surprising if you consider the improved security, draft proofing and optional insulation. A full list of pros and cons can be found on our door types page.

We thought we would put together a page with some example pricing, pictures taken during installation and other information.

There are a couple of manufacturers who sell good quality sectional doors, so we look at Hormann and Henderson in turn.

We have more details on the Hormann doors because there is little other information online.

Hormann Sectional Doors

Available models
Designs and styles
Glazing
Handles
Delivery
Choosing the correct size
Additional info
Pricing

LPU40 Georgian

Available models:
A top seller with us and with a 10-year warranty it's little wonder. They have five models to choose from all manufactured from polyester coated steel (except for the timber doors) and all have 'all round' weather seals:

EcoClassic
A single skin steel door. Only available in white. Available in widths: 7' to 10', in 6" increments.

EcoTherm
A double skin steel door with 20mm & 42mm insulation. Available in 12 colours. Available in widths: 7' to 10', in 6" increments and 12', 13', 14', 14'6" & 16'.

Series 40, LTE40
A single skin steel door. Available in White or Terra Brown (RAL8028). Available in widths: 7' to 10', in 6" increments and 12', 13', 14', 14'6" & 16'.

Series 40, LPU40
A double skin steel door with 42mm insulation. Available in a wide range of colours based on the RAL chart. Available in widths: 7' to 10', in 6" increments and 12', 13', 14', 14'6" & 16'.

Series 40, LTH40
Timber sectional doors for the ultimate, natural look without compromise - available in Nordic Pine or Hemlock. A whole range of designs are available including granite inserts which looks fantastic, you can even have your own design of profiling set into the door. Not cheap, but if an exclusive look is you thing - grab a brochure.

Designs and styles:
All of the above models are available in Ribbed or Georgian styles, the following images show the differences in a 7'x7' door:

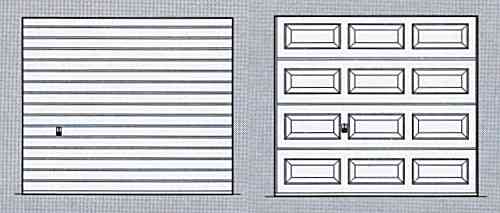

EcoClassic/EcoTherm - Ribbed design EcoClassic/EcoTherm - Georgian design

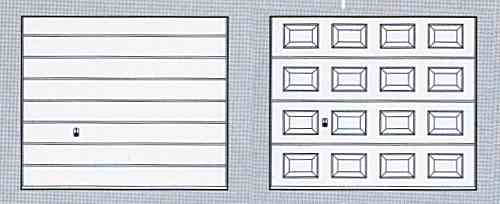

Series 40 (LTE & LPU) - Ribbed design Series 40 (LTE & LPU) - Georgian design

Back to top

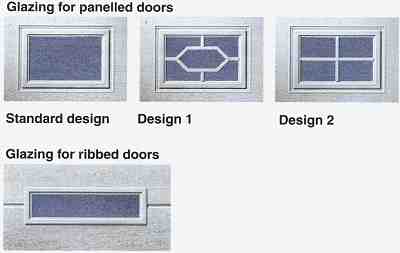

Glazing:
Windows (four designs) are available as an option in the top section only.
As an example a 7' wide EcoClassic will have four windows at £62 each = £248
A 14' wide LPU40 will have five windows at £76 each = £380
Handles:
Handles are supplied in black plastic as standard - cast Aluminium handles in a range of finishes are also available for £58.
White, rustic, silver, bronze or brass colours.

Delivery:
Delivery varies slightly depending on the size of door and options chosen, 2 to 3 weeks is common. All doors are supplied as a flat pack and are built up on site in 5/6 hours.

Back to top

Choosing the correct size:
Sectional doors fit inside the garage on the rear face of the brickwork and require 90mm of clearance on either side plus headroom clearance (the distance between the underside of the lintel and the ceiling) as detailed below:

- 100mm for EcoClassic and EcoTherm up to 10ft wide, 210mm for EcoTherm over 10ft wide, a low headroom kit is available for the EcoTherm over 10ft wide requiring 100mm clearance.
- 220mm for LTE and LPU, a low headroom kit is available requiring 125mm clearance.
- An additional 50mm should be added if you are considering automating the door.

What if your opening does not match a standard size of door? Don't forget you can remove existing wooden frames to improve the drive through. You have a couple of options... here is an example.

Mr Blogg's garage opening size is 7'9" wide x 7' high and he wishes to fit an EcoClassic:
Option 1 - install an 8' wide x 7' high door. As the door fits behind the brickwork some of the door simply does not show, however, the internal garage width will need to be at least 2438mm (8') plus 2 x 90mm clearance, i.e. 2618mm. One side must have at least 90mm clearance. In height the clearance will need to be 2125mm (7') + 100mm clearance, i.e. 2225mm.
Option 2 - install a 7'6" wide x 7' high door. All doors have a 90mm wide fully finished white (or brown if you order a brown door) frame which mounts to the brickwork. The drive through width will be reduced and 1½" of white frame will be visible on either side. The internal garage width will need to be at least 2286mm (7'6") plus 2 x 90mm clearance, i.e. 2466mm.

Additional info:
Doors are made up of four sections stacked on top of each other.
A double skin of steel adds stiffness to each section and therefore makes for a more secure door.
If a section gets damaged, then it can simply be replaced with a couple of hours work.

Pricing:
The prices below represent significant savings on the Manufacturer's Recommended Retail Price, as a guide:
7'x7' EcoClassic saves 13%
7'x7' EcoTherm saves 21%
14'x7' EcoTherm saves 24%
7'x7' LPU40 saves 24%
14'x7' LPU40 Georgian saves 26% (RRP £1431+VAT=£1681, our price £1241 inc VAT, a £440 saving!)

Call 01342 810777 to place your order. A delivery charge of £25 may apply - please call to confirm.

Hormann, EcoClassic, single skin steel sectional garage door in white:

All prices include VAT

Ribbed

Georgian

7'0" x 6'6" & 7'0" x 7'0"

£440

£479

7'6" x 6'6" & 7'6" x 7'0"

£464

£503

8'0" x 6'6" & 8'0" x 7'0"

£491

£535

8'6" x 6'6" & 8'6" x 7'0"

£504

£550

9'0" x 6'6" & 9'0" x 7'0"

£546

£617

9'6" x 6'6" & 9'6" x 7'0"

£555

£621

10'0" x 6'6" & 10'0" x 7'0"

£590

£672

Hormann, EcoTherm, double skin steel with 42/20mm insulation sectional garage door in white:

All prices include VAT

Ribbed

Georgian

7'0" x 6'6" & 7'0" x 7'0"

£554

£645

7'6" x 6'6" & 7'6" x 7'0"

£566

£731

8'0" x 6'6" & 8'0" x 7'0"

£594

£743

8'6" x 6'6" & 8'6" x 7'0"

£602

£779

9'0" x 6'6" & 9'0" x 7'0"

£645

£817

9'6" x 6'6" & 9'6" x 7'0"

£668

£841

10'0" x 6'6" & 10'0" x 7'0"

£688

£1026

12'0" x 6'6" & 12'0" x 7'0"
£900 £1117

13'0" x 6'6" & 13'0" x 7'0"
£927 £1159

14'0" x 6'6" & 14'0" x 7'0"
£959 £1034

14'6" x 6'6" & 14'6" x 7'0"
£994 £1191

16'0" x 6'6" & 16'0" x 7'0"
£1073 £1238

Hormann, LTE40, single skin steel sectional garage door in white:

All prices include VAT

Ribbed

Georgian

7'0" x 6'6" & 7'0" x 7'0"

£567

£613

7'6" x 6'6" & 7'6" x 7'0"

£571

£613

8'0" x 6'6" & 8'0" x 7'0"

£603

£650

8'6" x 6'6" & 8'6" x 7'0"

£608

£659

9'0" x 6'6" & 9'0" x 7'0"

£683

£747

9'6" x 6'6" & 9'6" x 7'0"

£705

£773

10'0" x 6'6" & 10'0" x 7'0"

£721

£793

12'0" x 6'6" & 12'0" x 7'0"
£866 £972

13'0" x 6'6" & 13'0" x 7'0"
£898 £1019

14'0" x 6'6" & 14'0" x 7'0"
£977 £1070

14'6" x 6'6" & 14'6" x 7'0"
£1022 £1142

16'0" x 6'6" & 16'0" x 7'0"
£1064 £1201

Hormann, LPU40, double skin steel with 42mm insulation sectional garage door in white:

All prices include VAT

Ribbed

Georgian

7'0" x 6'6" & 7'0" x 7'0"

£742

£771

7'6" x 6'6" & 7'6" x 7'0"

£749

£818

8'0" x 6'6" & 8'0" x 7'0"

£796

£847

8'6" x 6'6" & 8'6" x 7'0"

£813

£890

9'0" x 6'6" & 9'0" x 7'0"

£850

£935

9'6" x 6'6" & 9'6" x 7'0"

£893

£995

10'0" x 6'6" & 10'0" x 7'0"

£905

£1157

12'0" x 6'6" & 12'0" x 7'0"
£1148 £1242

13'0" x 6'6" & 13'0" x 7'0"
£1198 £1301

14'0" x 6'6" & 14'0" x 7'0"
£1223 £1241

14'6" x 6'6" & 14'6" x 7'0"
£1295 £1397

16'0" x 6'6" & 16'0" x 7'0"
£1371 £1568

Low headroom gear option: £90

Black plastic handles supplied as standard, cast Aluminium available in white, rustic, silver, bronze or brass colours: £58

Glazing options, priced per window:
EcoClassic, Std £62 - Style 1, 2 & Type D £74
EcoTherm, Std £74 - Style 1, 2 & Type D £80
LTE40, Std £70 - Style 1 & 2 £83 - Type D £68
LPU40, Std £76 - Style 1 & 2 £89 - Type D £81

Other sizes are available both in width and height - contact us for pricing.
