SeceuroGlide Excel in detail
The first (and only) LPCB level 1 approved
garage door on sale in the UK market also with 'Secured be Design'
approval; this door raises the benchmark for garage security. The thicker door slat (77mm high slat, 12mm
thick) and excellent automatic locking mechanism and enhanced security
features make this a very secure door indeed. The 300mm roll diameter (square end plates) gives a
drive-through height 350mm lower than the finished ceiling which enables
the door to be fitted in many more garages than the typical steel roller
doors. |
 Tough
webbing
|
|
The SeceuroGlide Excel roller
door offer increased security as the door is held in 90mm wide (all
door sizes) Aluminium 'C'-shaped guides all the way down both sides of the door from floor to
lintel and when the door is shut a very
effective locking mechanism is automatically engaged at the top of the curtain.
In addition bottom slat anchors automatically
engage once the door is closed. SWS
roller doors have excellent draft proofing as they have a weather
seal across the base of the door and thick brush-strips in the guides.
This door is only available with electric operation
and as standard comes with two remote controls and 'safety edge system'
for stopping the door if it touches an obstruction; a 'internal
switch only' option is available saving £100 against the prices below.
To view videos of break-in attempts check SWS's
detailed page on the Excel door... click the 'Testing'
button, then the links to the videos - very interesting,
particularly the end of the 'lift up attack' video where a non-SWS
'generic' door is breached all too quickly! |
 Locking
Comb
 Bottom
Slat anchor |
LPCB Approval info
In order to achieve an LPCB approved installation the following
criteria must be met:
1. The door must be fitted by an SWS approved fitter.
2. The top 300mm end plate must be above the lintel (i.e. Lintel to
ceiling no less than 300mm)
3. If 'face fitting' the guides must not protrude into the opening
4. If 'reveal fitting' special steel reinforcement plates must be used
as supplied by SWS AND the top 300mm end plate must still be above the
lintel.
5. An external manual override, vision slat, external switch or keypad cannot used.
6. An approved number of fixings must be used and heads spoiled (as
detailed in instructions)
Of course if you wish to DIY fit or if your installation will not
meet the above criteria then you may still purchase the product and
benefit from the higher level of security, however, you will not be able
to affix the LPCB approved sticker to 'authorise' the installation.
See full manufacturers specification
and product details on their website.
Also see pictures of an SWS Roller
garage door being installed.
Choosing the correct size
The door normally mounts to the inside rear face of the
garage door opening but can be surface mounted within the opening if
desired within the security limitations mentioned
above. SeceuroGlide Excel doors are supplied to your exact size requirements
without a cutting charge.
Fitting to the rear face of the opening (Face fit):
Measuring the width
Measure the brick to brick opening width, add the two guides
i.e. 2286 opening plus 2 x 90mm = 2466mm (Overguide width = 2466mm)
Measuring the height
a) Measure floor to lintel, i.e. 2200mm, ensure that you have the
clearance to the ceiling of 300mm to accommodate the roll, if it
is OK your guide height is 2200mm.
b) If you do not have the clearance for the roll measure your floor to
ceiling, i.e. 2450mm, take away the roll diameter, i.e. 2450mm -
300mm = a guide height of 2150mm. See LPCB
approval notes above
* Drive-through height is 50mm less than guide height.
Fitting inside the opening (Reveal Fit):
Measuring the width
Measure the brick to brick opening width and take away
a tiny amount of clearance
i.e. 2286mm opening less 6mm = 2280mm (Overguide width = 2280mm)
Note: in order to maintain LPCB approval the top 300mm end plate must be
behind the lintel - see LPCB approval notes
above.
Measuring the height
Measure floor to lintel, i.e. 2200mm, take away the roll diameter (300mm),
i.e. 2200mm - 300mm = a guide height 1900mm
Note in order to maintain LPCB approval the top 300mm end
plate must be behind the lintel - see LPCB
approval notes above.
* Drive-through height is 50mm less than guide height.
Brochure download
You can view SWS' own SeceuroGlide
sales brochure in PDF format - 5MB.
Warranty information
See SWS Roller doors page
Delivery
Delivery time for an SWS door is approximately 2/3 weeks.
Delivery to UK mainland is included in the prices below.
Options/Choices

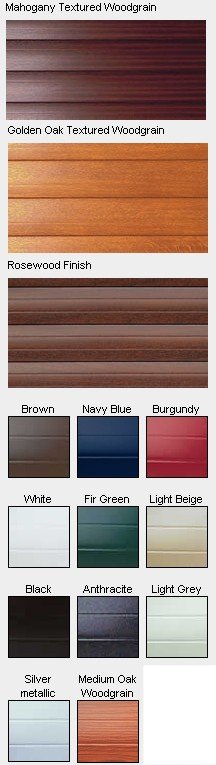

Colours
Colours at standard charge: White, Brown, Light Beige, Burgundy Red, Fir
Green, Navy Blue, Black, Anthracite, Graphite, Light Grey, Silver
Metallic, Heritage Green, Ivory, Duck Egg Blue, Chartwell Green, English
Oak, Walnut and Natural Oak.
Colours at higher charge: Textured Mahogany Woodgrain,
Textured
Golden Oak Woodgrain, Textured Rosewood Woodgrain, Textured Black/Brown
Woodgrain and Textured White Woodgrain.
Bottom and vision slats, along with guides may be a slightly
different shade to the curtain.
Medium Oak Woodgrain is supplied with Brown bottom.
Mahogany, Golden Oak and Rosewood are supplied with a matching bottom
slat and Brown inner face and guides.
Emergency Access
If you have no other access into the garage other than through the
garage door itself then you must fit an External Manual Overide; this
will enable you to wind the door up in the event of a power cut - it is
secured by a key/lock barrel to prevent unauthorised use. Cost
£165 inc VAT.
Although fitting an External Manual Overide means that your
installation
will not
meet the LPCB criteria you may still purchase the product and
benefit from the higher level of security, however, you will not be able
to affix the LPCB approved sticker to 'authorise' the installation.
Photocell safety beam
SWS recommend the use of the photocell safety beam if you have a
very short garage and the car will be parked close to the closing
door. £100 inc VAT.
Additional remote controls
Additional remote controls are priced at £55 inc VAT.
No remote control
If you do not need to operate the door by remote control and instead
prefer an internal wall switch then simply reduce the prices shown below
by £100. |
|
|
 |
Prices
The following prices for the SeceuroGlide Excel
include:
Single channel remote control receiver, two remote controls, courtesy light,
internal switch, touch sensitive safety system, internal manual
override, additional security fixtures.
VAT and delivery to UK mainland is included. Deliveries to
Eire, Northern Ireland, IOM and channel islands £50 surcharge.
SeceuroGlide
Excel
Basic colours, No box |
"Overguide width" (Opening plus 180mm ) |
|
2000mm |
2500mm |
3000mm |
3500mm |
4000mm |
4600mm |
5200mm |
|
Guide
Height
in mm |
1900mm |
£1245 |
£1350 |
£1160 |
£5305 |
£1670 |
£1820 |
£2000 |
|
2150mm |
£1260 |
£1360 |
£1466 |
£1550 |
£1690 |
£1840 |
£2030 |
|
2300mm |
£1290 |
£1375 |
£1480 |
£1560 |
£1710 |
£1860 |
£2050 |
|
2500mm |
£1320 |
£1410 |
£1550 |
£1590 |
£1710 |
£1940 |
£2120 |
|
3000mm |
£1525 |
£1650 |
£1750 |
£1780 |
£1970 |
£2170 |
£2335 |
|
3500mm |
£1580 |
£1710 |
£1850 |
|
|
|
|
SeceuroGlide
Excel
Woodgrain, No box |
"Overguide width" (Opening plus 180mm ) |
|
2000mm |
2500mm |
3000mm |
3500mm |
4000mm |
4600mm |
5200mm |
|
Guide
Height
in mm |
1900mm |
£1330 |
£1460 |
£1590 |
£1680 |
£1850 |
£2020 |
£2230 |
|
2150mm |
£1360 |
£1490 |
£1620 |
£1710 |
£1880 |
£2070 |
£2280 |
|
2300mm |
£1390 |
£1510 |
£1640 |
£1740 |
£1920 |
£2100 |
£2320 |
|
2500mm |
£1430 |
£1550 |
£1720 |
£1950 |
£1960 |
£2200 |
£2410 |
|
3000mm |
£1660 |
£1820 |
£1950 |
£2020 |
£2240 |
£2480 |
£2690 |
|
3500mm |
£1740 |
£1910 |
£2080 |
|
|
|
|
Optional items:
Additional remote controls: £55
95db Alarm module: £75
Photocell safety beam: £100
How to order:
Please call 01342 301811 - A deposit of 20% is required upon placing your order, a credit/debit card must be used; this can be done by telephone. We do not accept cheques for the payment of a deposit.
Supply only: If you wish to settle the balance by cheque then we require cleared funds prior to delivery. Payments by credit/debit card are due immediately upon delivery (not installation).
Supply and installation by AHA: If you wish to settle the balance by cheque then a cheque must be given to the installation engineer once handover has been completed. If your wish to settle the balance by credit/debit card payment please telephone the office the day after installation.
To order you'll need:
1. Payment for the deposit
2. Opening size width x height
3. Your choice of colour
4. The side that the motor is required (standing in side the garage
looking out)... consider... best side for 3-pin socket and access to
manual override if a car is in the garage.
5. Do you require any optional items?
Please call or email
us if you have any questions.
