Gliderol Roll-a-Glide Insulated Roller Doors

Gliderol are a large UK manufacturer of roller doors who supply their products to some of the big UK garage door manufacturers and also ship internationally.  You can see their website at www.gliderol.co.uk (all the Salesy stuff) but the important information (will it fit? how much is it?) is repeated on this page. Overview Choosing the correct Size Guarantee Information Delivery Options/Choices Download Brochure Prices How to Order

Overview

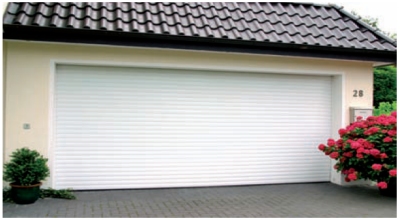

RollaGlide insulated Gliderol roller doors are a high security door made with powder coated aluminium slats which run in solid guide rails on each side.  The door normally mounts to rear face of the garage door opening which often allows for a wider opening width - useful for today's bigger cars.  They can also be fitted within the opening too.

It uses a 75mm high, 12mm thick slat and has a 300mm roll diameter which gives a drive-through height 350mm lower than the finished ceiling which enables the door to be fitted in many more garages than Gliderol's single skin steel door.

The RollaGlide roller door offers good security as the door is held in 95mm wide Aluminium 'C'-shaped guides all the way down both sides of the door from floor to lintel and when the door is shut an effective locking mechanism is automatically engaged at the top of the curtain.  RollaGlide roller doors have excellent draft proofing as they have a weather seal across the base of the door and thick brush-strips in the guides.

Powered by Somfy and with an impressive 5 year warranty, remote controloperation is virtually silent and is exceptionally smooth.  Rolling code technology ensures that security is paramount with a unique code generated each time the handset is activated. A wall mounted control box allows operation from inside the garage, whilst a compact handset allows activation of your door from outside your garage or inside your vehicle. For safety and convenience an automatic light illuminates your garage for up to five minutes each time the door is operated.

See full manufacturers specification and product details on their website .

Choosing the correct size
The door normally mounts to the inside rear face of the garage door opening but can be surface mounted within the opening if desired.  RollaGlide doors are supplied to your exact size requirements without a cutting charge.

Fitting to the rear face of the opening (Face fit):
Measuring the width
Measure the brick to brick opening width, add the two guides
i.e. 2286 opening plus 2 x 95mm = 2476mm (Overguide width = 2476mm)

Measuring the height
a) Measure floor to lintel, i.e. 2200mm, ensure that you have the clearance to the ceiling 300mm to accommodate the roll, if it is OK your guide height is 2200mm.
b) If you do not have the clearance for the roll measure your floor to ceiling, i.e. 2450mm, take away the roll diameter, i.e.  2450mm - 300mm = a guide height of 2150mm.
* Drive-through height is 50mm less than guide height.

Fitting inside the opening (Reveal Fit):
Note: Guides will be visible from outside and are supplied in white or brown only (other colours at a surcharge)
Measuring the width
Measure the brick to brick opening width and take away a tiny amount of clearance
i.e. 2286mm opening less 6mm = 2280mm (Overguide width = 2280mm)

Measuring the height
Measure floor to lintel, i.e. 2200mm, take away the roll diameter (300mm),
i.e. 2200mm - 300mm = a guide height of 1900mm
* Drive-through height is 50mm less than guide height.



Guarantee information: Gliderol doors are built to take the wear and tear of life and the weather and they are able to provide some impressive guarantees as long as the door is reasonably maintained: 10-year door finish (limited) 2-year manufactured parts 5-year Somfy motor Delivery As a rule of thumb orders received in week 1 are manufactured during week 2 and delivered direct from the manufacturer during week 3.  Delivery is free for the majority of UK destinations however the Scottish Highlands and other outlying areas will attract a delivery charge - contact us for details.   Options/choices Colours: RollaGlide roller doors are available in a choice of 7 colours at no additional charge: White, Black, Honesty, British Racing Green, Burgundy, Vandyke Brown, and Night Blue  The following colours are foil finishes bonded to the slats and are exactly the same as the foils used in many uPVC windows: Mahogany Woodgrain, Rosewood Woodgrain and Golden Oak Woodgrain  Important Note: Guides are available in white or brown only.  They can be coloured to match your door at a surcharge of £50 inc VAT. Additional remote controls are £45 inc VAT External Manual Override:  In the event of a power failure you will need to access the garage via a personnel door to wind the manual override and open the door manually.  If you do not have an alternative way into the garage then you must purchase the 'External Manual Override' at £110 inc VAT.  This is fitted next to the garage door... turning the key enables you to remove the barrel of the lock and insert and winding handle.   Battery backup systems are available at £185 inc VAT.  If you have no rear access into the garage you must still have an external manual override. Anti Vandal Keypad: Allows you to enter a 4-digit code to open the door.  Usually mounted on the wall outside and uses wireless connection to the control box.  £165 inc VAT

Close up of Golden Oak Woodgrain

Brochure Download
Please download Gliderol's Roll-a-Glide brochure.

Prices
We have listed prices for opening heights up to 2.5m as these are the most popular sizes - just email us if you want a price for another height (maximum is 3000mm high). The kit includes:

Single channel remote control receiver, two remote controls, courtesy light, internal switch, touch sensitive safety system, internal manual override.

VAT and delivery to UK mainland is included.  Deliveries to Eire, Northern Ireland, IOM and channel islands surcharge - call for details.

How to order:
Please call 01342 301811 - A deposit of 20% is required upon placing your order, a credit/debit card must be used; this can be done by telephone. We do not accept cheques for the payment of a deposit.

Supply only: If you wish to settle the balance by cheque then we require cleared funds prior to delivery. Payments by credit/debit card are due immediately upon delivery (not installation).

Supply and installation by AHA: If you wish to settle the balance by cheque then a cheque must be given to the installation engineer once handover has been completed. If your wish to settle the balance by credit/debit card payment please telephone the office the day after installation.

Sorry! We don't use online ordering because we want to talk to you and make sure it fits!!!!

To order you'll need:

1. Payment for the deposit
2. Opening size width x height
3. Your choice of colour
4. The side that the motor is required (standing in side the garage looking out)... consider... best side for 3-pin socket, access to manual overide if a car is in the garage, biggest side clearance for easiest set up during installation.
5. Do you require the External Manual Release/Electric Key Switch?
6. Do you require any additional remote controls or battery backup?

Please call or email us if you have any questions.
